Trinnov magnitude32 software suite not only gathers conventional processing toolkits such as EQs, delays, bass management…but also 3D acoustic analysis, smart graphs engine, 4-ways Intelligent Crossovers, State-of-the-Art Digital Room/Loudspeaker correction and 2D/3D Speaker Remapping. No matter how complex is the sound system, the installation procedure becomes fast en easy.

EVOLUTIVE I/O ARCHITECTURE

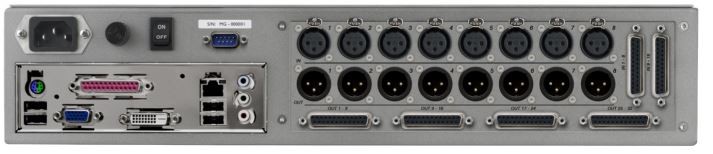

mg32-88 configurations allow for 8 simultaneous I/O and 8 processing channels. Optional ADA4 and DA8 expansion boards can be added to provide up to 16 Inputs and 32 Outputs channels. While the first 8 channels are available through XLR connectors, channels 1-32 are also provided in a SubD25 standard Tascam format, facilitating cable synoptic drawings.

COMPREHENSIVE PROCESSING
Comprehensive 64 bits floating point processing tools are included in standard on each processor platform: Routing and Mixing Matrixes, Manual FIR filters, Parametric EQs, Graphic EQs, gains, trims, RMS meters, manual delays, Bass Managment, 4-way active crossovers, inputs formats, noise generatos, Polarity Control, upmix matrices, DRC controller, advanced XML programming…Enhanced with Trinnov’s State-Of-The-Art acoustic analysis and Digital Loudspeaker/Room Optimization software, the magnitude32 becomes the most powerful speaker processor available on the market.

INTELLIGENT CROSSOVER ALIGNMENT
Individual driver and system measurements are acquired and analyzed, including the impulse response, delays and gains of every driver. The Optimizer’s calibration engine computes the ideal filters, finding the best compromise to improve flatness, directivity and attack in the overlapping frequency regions.

CUSTOM PROFILES
Trinnov combines automatic processes with flexible fine-tuning tools that allow the sound system designer to reach the best results, while making the whole process easier and faster. 8 customisable Profiles allow to mix up different parameters independently from any of the 29 existing user presets.

REMOTE CONTROL
Real-Time remote capabilities can be achieved using Trinnov’s proprietary RS-232 and Ethernet IP protocol or via automation systems.
The graphical user interface can be accessed remotely from any PC, Mac, Tablet or SmartPhone over the network, using a VNC client application.

PRESETS BACKUP
The magnitude32 supports presets storage/backups via FTP or USB.
In addition, presets can be uploaded onto Trinnov Audio server and reloaded into a customer’s unit upon installers request.

REMOTE MONITORING
Certified Trinnov Audio installers can use a secured network access to their customers unit to provide assistance of make further adjustments.

LOUDSPEAKER/ROOM OPTIMIZER

MODERN ACOUSTIC MEASUREMENTS AND ANALYSIS
The magnitude32 uses MLS signals to measure the full impulse response of every loudspeaker in the room. This adds the time dimension to the frequency response, and enables the Optimizer to see the full picture of the loudspeaker’s behaviour in the room. Trinnov’s state-of-the art time-frequency analysis algorithms identify room modes, first reflections and late reverberation. Every acoustic component is analysed and compensated with a specific techniques. All the subtlety of the Optimizer resides in knowing which defects can be corrected with acoustic transparency.

POWERFUL EQUALIZATION
The magnitude32 intelligent acoustic engine automatically computes FIR and IIR filters to improve the consistency of the direct sound against late reverberation. Full-phase, time domain techniques are applied, compensating for the loudspeaker’s group delay and early reflections, while later reflections are left untouched.

COMPREHENSIVE GRAPHS
The integrated acoustic analysis tools provide insight on the measurements. You can easily overlay multiple graphs to compare loudspeakers characteristics, measurements points, or the results of the optimization against the unoptimized sound.

TONAL BALANCE AND TARGET CURVES
The loudspeaker’s direct sound (including early reflections) and the room (energy response) are separately equalised, opening up the listening window. The Optimizer corrects the tonal balance by targeting the most neutral timbre for each speaker. Furthermore, target curves can be defined to achieve very specific results or preserve the original loudspeakers characteristics.

INTER CHANNEL IMAGES AND PHASE RESPONSE
By addressing phase responses issues, the magnitude32 result is a high resolution image with well-focused phantom sources.

3D REMAPPING
2D and 3D remapping is one of Trinnov’s leading technology. Thanks to the 3D microphone measurements capabilities, speakers distance, azimuths and elevations can be identified precisely. According to these reported informations, a more accurate speaker placement can be retrieved, ensuring a full compliance with cinema surround sound standards.

WIDE LISTENING AREA AND MULTI-POINT
Trinnov’s sophisticated multipoint algorithms can take into account the measurements of different positions to perform the Optimization. You can assign a higher weight to the most important listening position(s), and lower weights of the other points.
