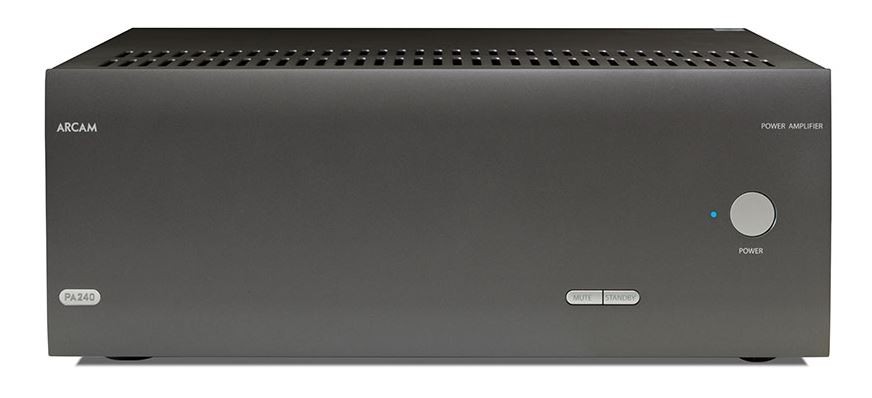

Arcam PA240 2 Channel Power Amplifier

More Views

Arcam PA240 2 Channel Power Amplifier
£1,999.00

Availability: In stock

Arcam PA240 2 Channel Power Amplifier

Exceptional Power, Immersive Sound

The PA240 is a high-performance power amplifier that delivers 2 channels of efficient Class G amplification. With an impressive 380W per channel, the PA240 is designed to offer the greatest flexibility and power without compromising on control.

Featuring the best-in-class components including a toroidal based power supply, acoustically damped chassis, paralleled transistor output stages and exceptionally low levels of distortion, the PA240 masters the reproduction of music with all its originality and detail for an unmatched level of sound quality and clarity.

2 Channel Power Amplifier
2 x 380W Class G amplification
1 x 790W Class G bridged mode
Class G amplification with 50W of class A operation
Toroidal transformer
Stereo, Dual Mono or Bridged operation
Ethernet, RS232 control
Switchable RCA or balanced XLR inputs

Please call 0131 558 1310 to order this item

* Required Fields

£1,999.00

Please call 0131 558 1310 to order this product

Description

Details

Continuous power output at 0.2% THD per channel
2 channels driven, 4Ω / 8Ω, 20Hz – 20kHz 380W/225W
1 channel driven, 8Ω bridged mode, 20-20kHz 790W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.001%
Inputs
RCA Type XLR Type
Input sensitivity 200W / 8Ω 1.15V RMS 2.3V RMS
Signal/Noise ratio (A-wtd) 50W / 8Ω 110dB
Input impedance 10kΩ
Frequency response 20 - 20kHz +/-0.05dB
General
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW
Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions W x H x D (including feet,
control knob and speaker terminals)
433 x 425 x 177mm
Weight (net) 18kg
Weight (packed) 19.7kg
EAN 6925281956768

Additional Information

Additional Information

Manufacturer Arcam
In Store Only Yes
